WoodNet Forums: New year, new workbench

In a burst of energy with the new year, I finally made some movement towards building my "real" workbench. The temporary poplar-beam-on-sawhorses workbench that I had been using since May still works great. I've been able to plane, chop mortises, do chisel work, and saw using it without issues. I think that the reason it's taken me so long to get around to building my "real" workbench is that the poplar beam has worked out so much better than I thought it would. And actually, the main benefit that I think I will get from this bench is extra counter space. I think this benchtop will wind up being about 7' x 22". Over the past several months, I've needed the extra counter space much more than I've needed a leg vise.

Anyway, here's where I started:

I jointed and squared up eight 8' Douglas fir 4x4s that I've accumulated from a local borg over a 12 month period. When I'm done gluing this up, I expect to have a benchtop that's essentially clear quartersawn Douglas fir with pretty tight grain (21-38 rings per inch, if I counted correctly).

The milling I did last Thursday. This weekend I made some headway in gluing up my workbench top. I learned just how much wood can twist and bow after you do initial milling. I also got a lot more practice at correcting this twist with hand planes, if you know what I mean. Although I know I know this, I am really surprised as to how quickly I can square up something this large with hand planes. In some ways, it was easier than the initial milling up with my jointer/planer combo.

The other thing I learned is that if one of my planes is working in a less than optimal manner, I know how to correct it. For some reason, though, I insist on just plowing ahead instead of stopping to tune up the plane, until I get to the point where I just have to do it. Then I find out that I'll zip along three times as fast as I was.

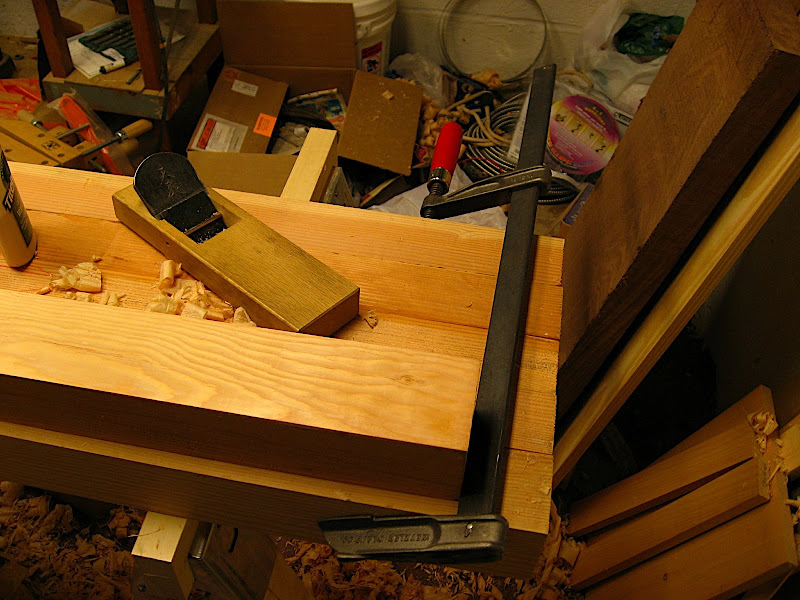

To get going on this, I clamped together most of the 4x4's together on the sawhorses to provide a temporary work surface, squared up two of the beams, and then unclamped the other 4x4's to give me room to use the sawhorse as a support for the glue up. In fact, I had put the bar of the clamp on the top side so it could be used as a planing stop.

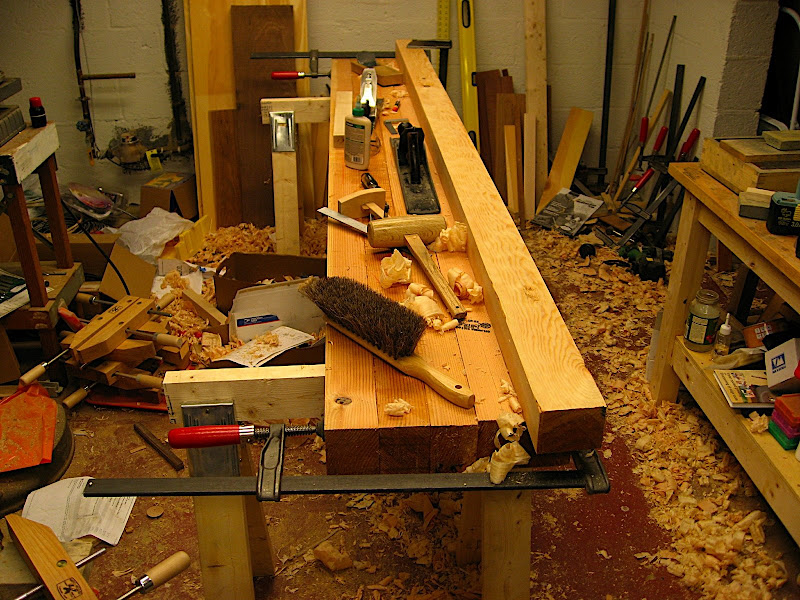

As you can see in the picture, I'm also learning the true meaning of the phrase, "You can't have too many clamps." I placed an order for some more today. Hopefully they'll get here in a timely manner.

All together, there will be eight 4x4's going into this benchtop. I'm planning on gluing one additional beam a day, partly because I only have so many clamps, partly because of space issues (the picture really shows the entire width of my shop) and partly because I want to get a full day of drying time for the glue, just in case I didn't take care of all the twist. I'll probably do another set of three separately, and then finish up with the remaining 4x4s.

--------------------
